Extreme Duty Skid-Steer Buckets

  • Choose from buckets widths of 72″, 78″, 84″ and 96″
  • 25% heavier bucket shell and 80% heavier cutting edge
  • Also available: Heavy Duty Skid-Steer Buckets

Extreme Duty Bucket perfect for all types of applications

The Star Industries Extreme Duty Skid Steer Bucket is the market’s toughest bucket and built to last. It’s constructed with an extra 25% heavier bucket shell, AR400 heel plate and AR400 wear bars, reinforced quick-tach and an 80% heavier cutting edge to withstand the harshest of treatment.

The bucket also has fully welded seams and reinforced hat section and side blades to strengthen and protect bucket sides. The shell is rolled for easy clean out. Bolt-On-Blade is optional.

  1. Strong hat section: provides unyielding strength across the entire top of bucket.
  2. Steel side blades: strengthens and protects bucket sides.
  3. Seams Fully welded: continuous weld inside and outside of shell seams provides greater strength and longer life.
  4. Low Profile design: operator can see the leading edge from the seat. Other profiles are also available.
  5. 1” x 8” Cutting Edge
  6. Buckets designed to fit each brand of loader: even though all new skid-steer loaders use a universal quick-tach they require different bucket profiles for proper operation. Star buckets are built to match your specific make & model of skid-steer loader.
  7. Strong Universal Quick-Tach: constructed of 3/8” plate steel to stand up to the new more powerful skid-steer loaders.
  8. Scuff Bars – ½” Thick
  9. Square bottom: permits “back dragging” to level your work. Sets close to the ground. Landscapers love it.
  10. Heal Plate – ½” AR400


Available options

  • Side Cutting Teeth – Bolt-On
  • Punched blade with bolt-on-blade: The reversible ⅝” x 8” bolt-on-blade gives 3 times the wear
  • Heavy-duty teeth: Features ‘pin-on’ series 23 teeth that measure 2¼ “across the point
Operating manual/safety information available online and at 1-800-541-1797
XD Bucket with teeth and optional bolt-on-blade
   Extreme Duty Skid Steer Buckets
EXTREME DUTY SKID STEER BUCKETS
Model No. Width ID inches Width OD inches Height OD inches Depth OD inches Capacity Heaped Weight

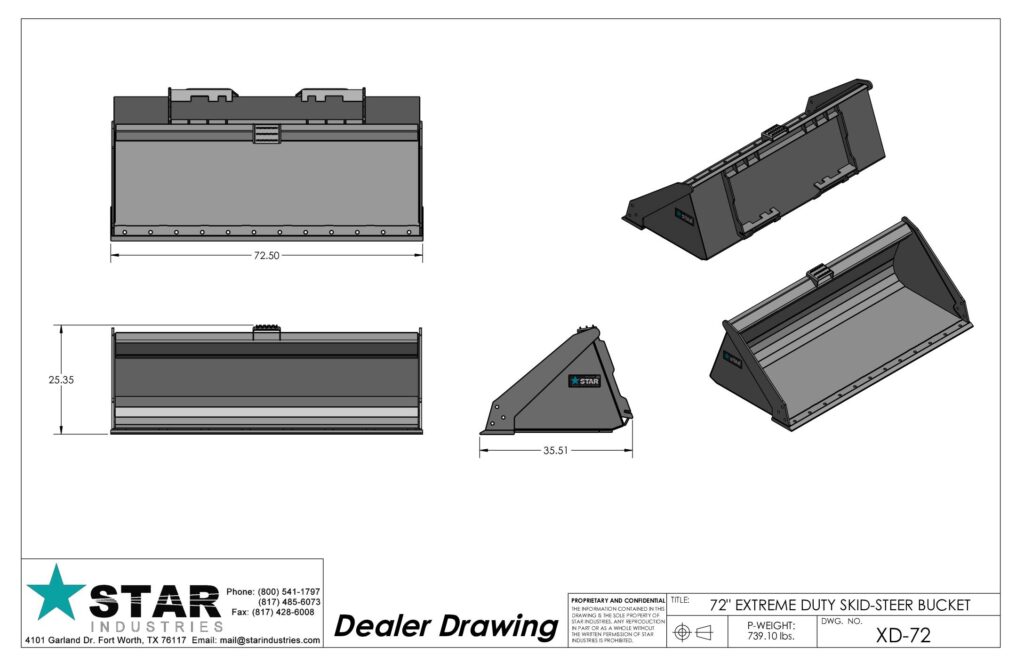

XD-72 70 1/2” 72” 24” 34” 18.2 cuft. 717 lbs.
XD-78 76 1/2” 78” 24” 34” 18.7 cuft. 764 lbs.

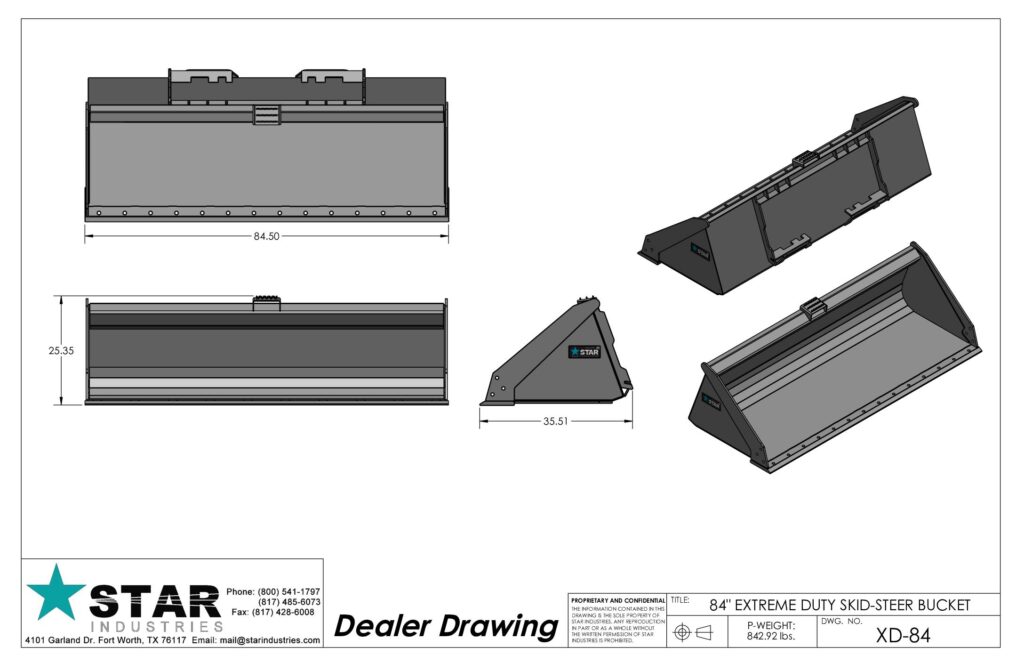

XD-84 82 1/2” 84” 24” 34” 21.2 cuft. 787 lbs.

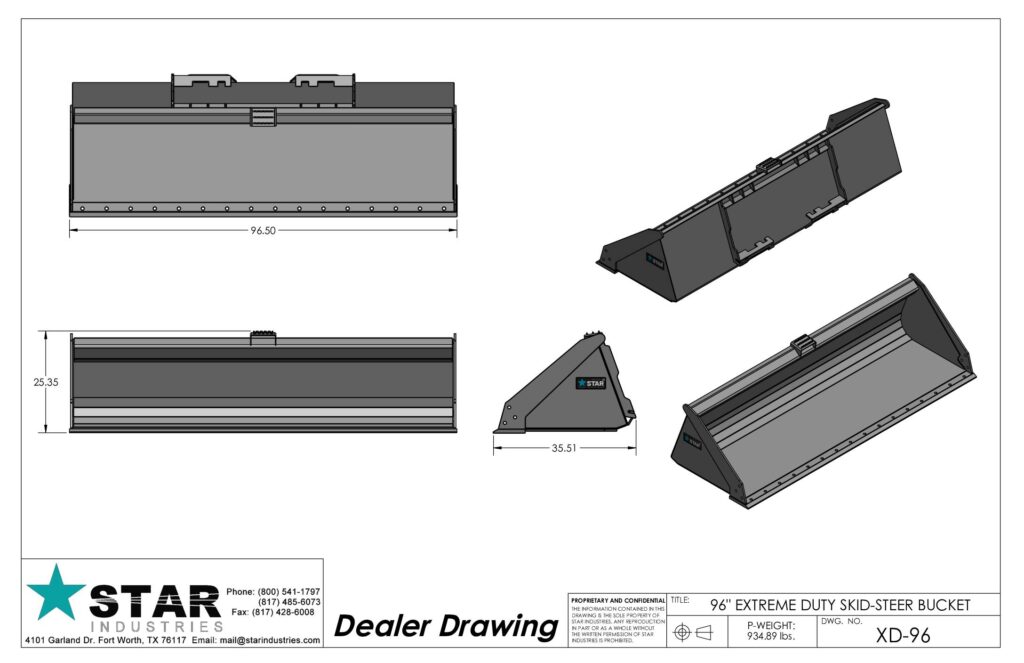

XD-96 94 1/2” 96” 24” 34” 24.2 cuft. 922 lbs.

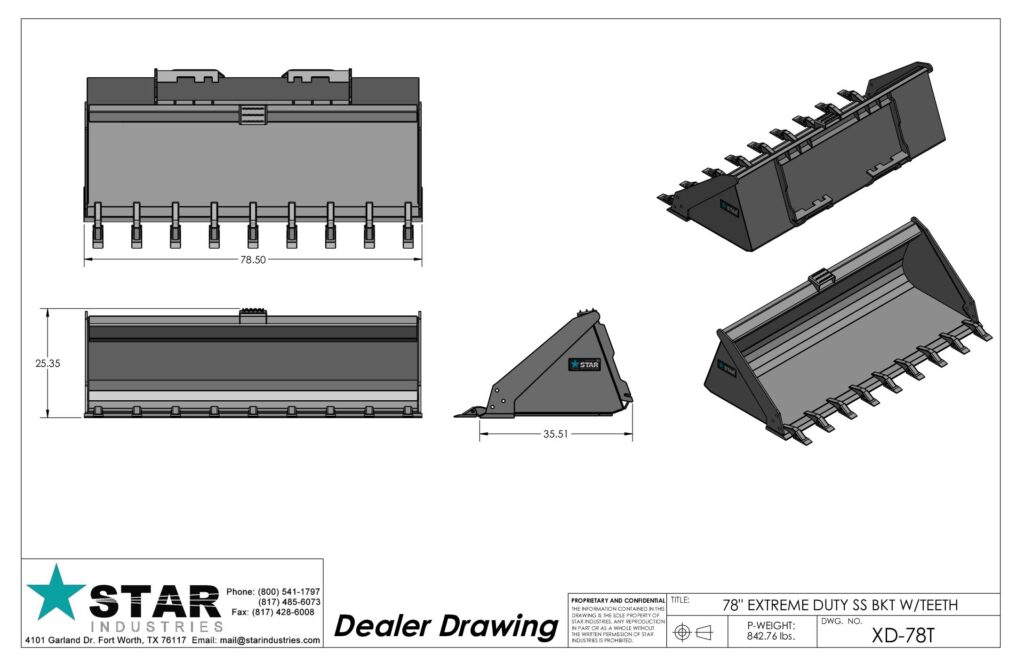

EXTREME DUTY SKID STEER BUCKETS WITH TEETH
Model No. Width ID inches Width OD inches Height OD inches Depth OD inches Capacity Heaped Weight
XD-72T 70 1/2” 72” 24” 34” 18.2 cuft. 767 lbs.
XD-78T 76 1/2” 78” 24” 34” 18.7 cuft. 820 lbs.
XD-84T 82 1/2” 84” 24” 34” 21.2 cuft. 887 lbs.
XD-96T 94 1/2” 96” 24” 34” 24.2 cuft. 993 lbs.
