Heavy Duty Skid-Steer Buckets

  • Choose from buckets widths of 60″, 66″, 72″, 78″ and 84″
  • 5 bucket profiles: low profile, dirt, utility, snow & light material, fertilizer and cotton seed
  • Also available: Extreme Duty Skid-Steer Buckets

Heavy Duty Bucket perfect for all types of applications

The Star Industry Heavy Duty Skid Steer Bucket is built to last. It’s constructed with extra heavy-duty steel, fully welded seams and reinforced hat section and side blades to strengthen and protect bucket sides. The bucket’s bottom is set close to the ground for level ‘back dragging’ (landscapers love it!).
  1. Strong hat section: provides unyielding strength across the entire top of bucket.
  2. Steel side blades: strengthens and protects bucket sides.
  3. Seams Fully welded: continuous weld inside and outside of shell seams provides greater strength and longer life.
  4. Low Profile design: operator can see the leading edge from the seat. Other profiles are also available.
  5. Bevelled hard carbon steel punched blade: on leading edge ½” x 6” or ¾” x 6” depending on bucket width.
  6. Buckets designed to fit each brand of loader: even though all new skid-steer loaders use a universal quick-tach they require different bucket profiles for proper operation. Star buckets are built to match your specific make & model of skid-steer loader.
  7. Strong Universal Quick-Tach: constructed of 3/8” plate steel to stand up to the new more powerful skid-steer loaders.
  8. Heavy (½” x 3”) scuff bars: three to five bars, depending on width, reinforce bucket bottom and protect from excessive wear.
  9. Dual Safety Steps
  10. Square bottom: permits “back dragging” to level your work. Sets close to the ground. Landscapers love it.


Available options

  • Punched blade with bolt-on-blade: The reversible ⅝” x 8” bolt-on-blade gives 3 times the wear
  • Heavy-duty teeth: Features ‘pin-on’ series 23 teeth that measure 2¼ “across the point
Operating manual/safety information available online and at 1-800-541-1797

Optional Bucket Profiles

Heavy Duty Bucket with teeth and blade options
   Heavy Duty Skid Steer Buckets
LOW PROFILE DIRT SKID-STEER BUCKETS
Bobcat / CAT / Daewoo / Komatsu / Takeuchi / Volvo / Trak
Model No. Width ID inches Width OD inches Height OD inches Depth OD inches Capacity Heaped Weight

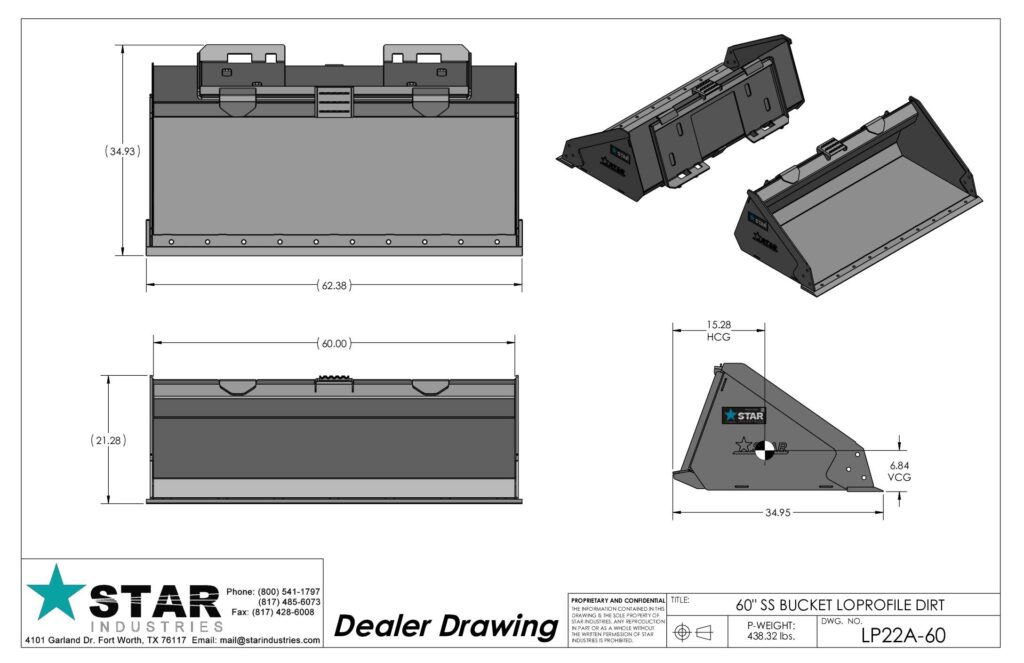

LP22A-60 60” 62 ⅜” 20 ¼” 34” 15.0 cuft. 435 lbs.
LP22A-66 66“ 68 ⅜” 20 ¼” 34“ 16.5 cuft. 510 lbs.

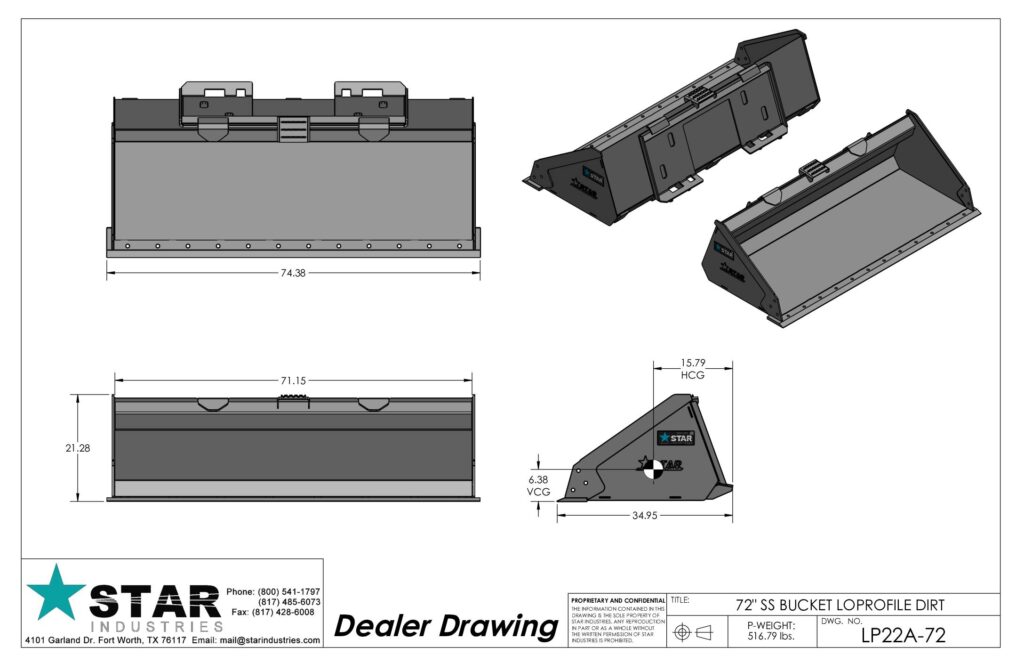

LP22A-72 72“ 74 ⅜” 20 ¼” 34” 18.0 cuft. 560 lbs.
LP22A-78 78“ 80 ⅜” 20 ¼” 34“ 19.6 cuft. 565 lbs.

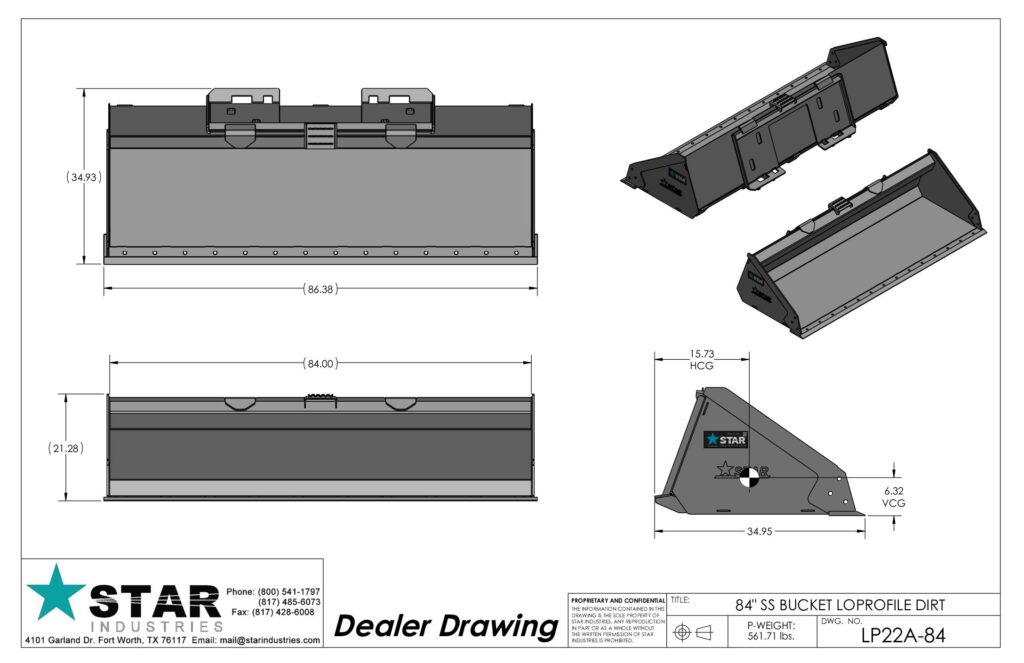

LP22A-84 84“ 86 ⅜” 20 ¼” 34” 21.0 cuft. 600 lbs.
Case / Gehl / JCB / John Deere / Mustang / New Holland / Thomas
Model No. Width ID inches Width OD inches Height OD inches Depth OD inches Capacity Heaped Weight
LP29G-60 60” 61 ⅜” 20 ⅞” 36“ 15.6 cuft. 452 lbs.
LP29G-66 66” 68 ⅜” 20 ⅞” 36” 17.3 cuft. 505 lbs.
LP29G-72 72” 74 ⅜” 20 ⅞” 36“ 19.0 cuft. 559 lbs.
LP29G-78 78” 80 ⅜” 20 ⅞” 36” 20.6 cuft. 589 lbs.
LP29G-84 84” 86 ⅜” 20 ⅞” 36” 22.3 cuft. 626 lbs.
LOW PROFILE DIRT SKID-STEER BUCKETS with BOLT on BLADE
Bobcat / CAT / Daewoo / Komatsu / Takeuchi / Volvo / Trak
Model No. Width ID inches Width OD inches Height OD inches Depth OD inches Capacity Heaped Weight
LP22A-60BOB 60” 62 ⅜” 20 ¼” 34” 15.0 cuft. 516 lbs.
LP22A-66BOB 66“ 68 ⅜” 20 ¼” 34“ 16.5 cuft. 600 lbs.
LP22A-72BOB 72“ 74 ⅜” 20 ¼” 34” 18.0 cuft. 658 lbs.
LP22A-78BOB 78“ 80 ⅜” 20 ¼” 34“ 19.6 cuft. 673 lbs.
LP22A-84BOB 84“ 86 ⅜” 20 ¼” 34” 21.0 cuft. 715 lbs.
Case / Gehl / JCB / John Deere / Mustang / New Holland / Thomas
Model No. Width ID inches Width OD inches Height OD inches Depth OD inches Capacity Heaped Weight
LP29G-60BOB 60” 61 ⅜” 20 ⅞” 36“ 15.6 cuft. 533 lbs.
LP29G-66BOB 66” 68 ⅜” 20 ⅞” 36” 17.3 cuft. 595 lbs.
LP29G-72BOB 72” 74 ⅜” 20 ⅞” 36“ 19.0 cuft. 657 lbs.
LP29G-78BOB 78” 80 ⅜” 20 ⅞” 36” 20.6 cuft. 697 lbs.
LP29G-84BOB 84” 86 ⅜” 20 ⅞” 36” 22.3 cuft. 741 lbs.
LOW PROFILE DIRT SKID-STEER BUCKETS with TEETH
Bobcat / CAT / Daewoo / Komatsu / Takeuchi / Volvo / Trak
Model No. Width ID inches Width OD inches Height OD inches Depth OD inches Capacity Heaped Weight
LP22A-60T 60” 62 ⅜” 20 ¼” 34” 15.0 cuft. 479 lbs.

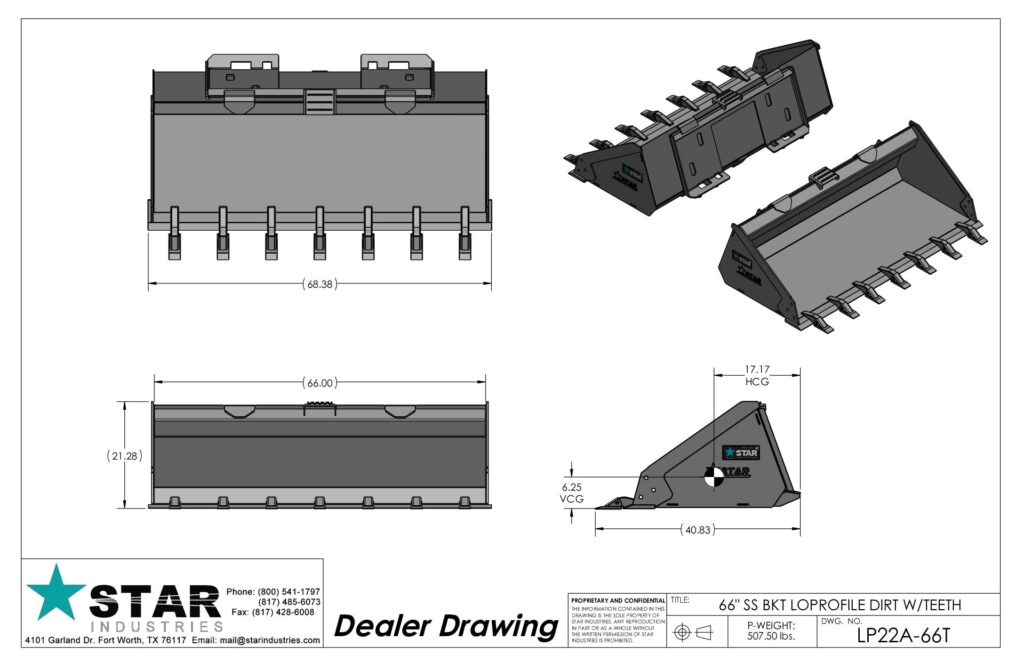

LP22A-66T 66“ 68 ⅜” 20 ¼” 34“ 16.5 cuft. 560 lbs.
LP22A-72T 72“ 74 ⅜” 20 ¼” 34” 18.0 cuft. 610 lbs.

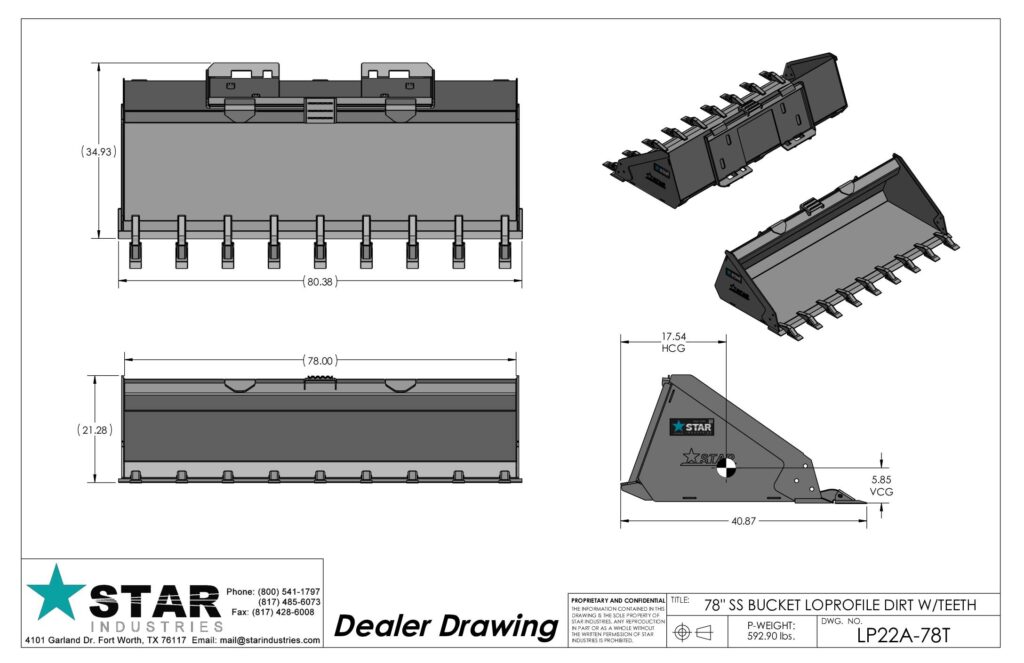

LP22A-78T 78“ 80 ⅜” 20 ¼” 34“ 19.6 cuft. 621 lbs.
LP22A-84T 84“ 86 ⅜” 20 ¼” 34” 21.0 cuft. 662 lbs.
Case / Gehl / JCB / John Deere / Mustang / New Holland / Thomas
Model No. Width ID inches Width OD inches Height OD inches Depth OD inches Capacity Heaped Weight
LP29G-60T 60” 61 ⅜” 20 ⅞” 36“ 15.6 cuft. 452 lbs.
LP29G-66T 66” 68 ⅜” 20 ⅞” 36” 17.3 cuft. 505 lbs.
LP29G-72T 72” 74 ⅜” 20 ⅞” 36“ 19.0 cuft. 559 lbs.
LP29G-78T 78” 80 ⅜” 20 ⅞” 36” 20.6 cuft. 589 lbs.
LP29G-84T 84” 86 ⅜” 20 ⅞” 36” 22.3 cuft. 626 lbs.
